i-346  Illuminometer
 Наличност: не

sekonic_logo_33

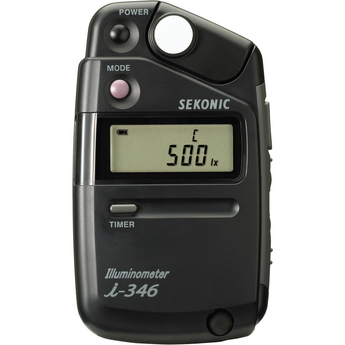

Compact and lightweight analog incident/reflected shoe mount meter.




  • Sekonic introduces the Illuminometer i-346, a simple, easy-to-use lux/foot candle meter for monitoring illumination in workplace and other environments.
  • Small enough to carry in a shirt pocket, it has large LCD readout and simplified controls. Readings can be made in three ways: Single, continuous, or delayed up to 60 seconds for use when reflection from the operator may affect the reading outcome.
  • The readout can be customized to display in either lux (lx) or footcandle (fc) increments.
  • A single AA-size battery powers the i-346 for up to 20 hours of continuous reading.
  • When not in use, it automatically switches off after 4 minutes to save power.



-------------------------------------------------------------------------------------------------------
Specifications:

Technical Specifications

Type: Illuminometer

Light receptor element: Silicon photo diode

Measurement cycle: 0.5 seconds

Measurement range: 2.50 lx to 200,000 lx


0.23 fc to 18,600 fc

Display: Lux(lx), Foot-candle (fc); Significant digits: 3 digits


UNDER / OVER range warning


Batter power indicator

Linearity: ±5% (23°C +/- 2°C)

Other functions:
 Automatic power OFF (About 4 minutes after last operation)

Operating temperature range:
 32° to 104°F (0°C ~ 40°C)

Storage temperature range:
 -4° to 140°F (-20°C ~ 60°C)

Power:
 AA battery 1.5V x 1 (Alkaline, manganese, lithium, NiMH)

Dimensions: 2.3"W x 4.3"H x .87"D (63 x 110 x 22 mm)

Weight:
 3.35 oz. (95g) with battery

Included accessories:
Soft case, AA battery x 1 (manganese)





Aperture

F0.5 to 90.9 in 1, 1/2, 1/3 steps
