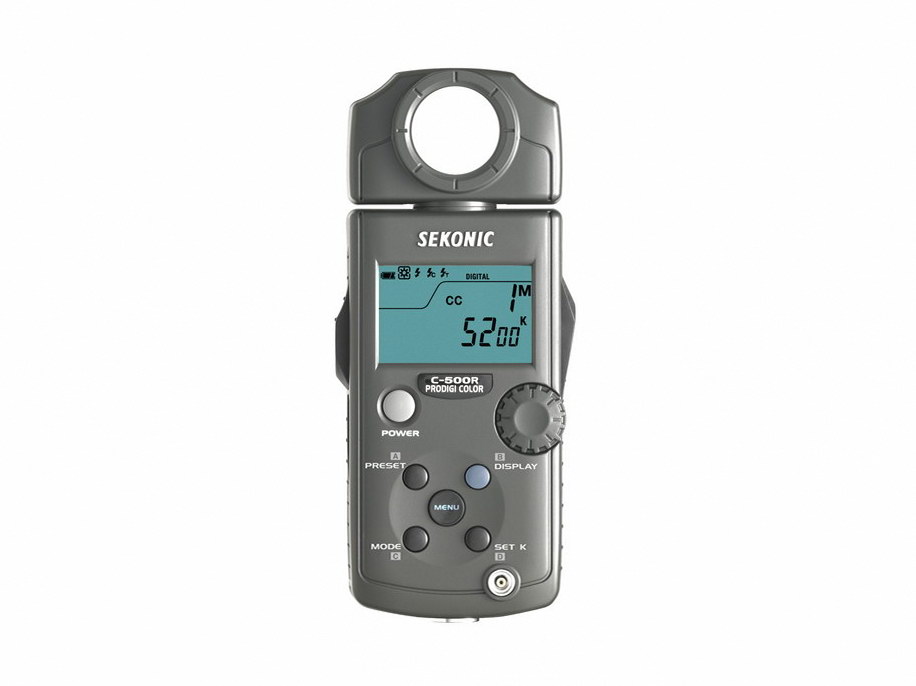

C-500R  PRODIGI COLOR

sekonic_logo_33















  • Identical to the C-500, the "R" model adds wireless triggering for your flash and camera. Sekonic provided the answer to exposure control with the L-758DR, the world's first meter that can be tuned to a film or digital camera. With the new PRODIGI COLOR C-500 and C-500R, Sekonic gives photographers the world's only photographic color meter designed to read spectral sensitivity of both color film and CCD and CMOS sensors used in today's digital still and DV cine cameras.
  • Serious photographers and cinematographers know that good lighting and proper exposure are more important now than ever. With the higher demands of today's digital medium, "garbage in" can mean hours of postproduction. They know that color is a critical factor when multiple light sources are involved. Changing reflectors, adding diffusion or adjusting power levels will result in a color temperature change that needs to be corrected. They know that taking the time to do it right is always a good investment because "perfect in" always looks better than an image that has been adjusted.
  • Color Control Command Center
    Easy, one-touch display. The world's most comprehensive array of color/illumination information. The PRODIGI COLOR C-500 and C-500R put you in command of any color control situation.

-------------------------------------------------------------------------------------------------------
Specifications:

Technical Specifications

Type: Three-color photographic color meter with four sensors to determine visual (digital) or photographic (film) color temperature of light sources and filtration required

Receptor head:
 Rotating (90A° to the right/180A°to left) receptor head containing four filtered photo diodes under flat incident light recepter

Measurement type

Digital mode:
 Visual Color Temperature (based on color matching function)

Film mode:
 Photographic color temperature (based on film spectral characteristic)

Measuring modes
Ambient:
 Yes
Flash: Cordless/Cord-in
Radio triggering


Measuring Ranges

Color Temperature:
 2,300K to 20,000K

(At ISO 100 equavalent):
 Ambient light: EV3 to 16.3 (20lx to 200,000lx)
Flash light: Range Low F No.2.8 to 22 (20lx/s to 1,300lx/s); Range High F No.16 to 90.9 (640lx/s to 38,000lx/s)
Illuminance: Ambient light: 2.5lx to 610,000lx; 0.23FC to 56,500FC


Display Modes
Digital:
 Ambient/Flash light:
*Visual Color temperature + CC index
*LB filter number + CC filter number
(Fuji's LBA/LBB, Kodak Wratten/LEE filter number)
*LB index + CC index

Film: Ambient/Flash light:
*Photographic Color temperature
*LB filter number + CC filter number
(Fujia€™s LBA/LBB, Kodak Wratten/LEE filter number)
*LB index + CC filter number

Illuminance: Ambient light only:
*Lux(lx)
*Foot-candle(ft-cd)


Display Ranges

Measured color temperature:
 2,300K to 20,000K

Selected color temperature:
 2,500K to 10,000K

LB index: -500 to +500 (in MK-1)

LB filter number:
 Fuji's LBA/LBB: LBB20 to LBA20
Kodak Wratten/Lee: 80A+80D to 85B+81EF

CC index: 80G to 80M

CC filter number: 200G to 200M

Illuminance:
 2.5lx to 610,000lx
0.23FC to 56,500FC
Shutter speed:
 Flash light: 1s to 1/500s (in 1, 1/2 or 1/3 steps) plus 1/75, 1/80, 1/90, 1/100, 1/200, 1/400

Preset no.:
 Digital mode: 19
Film mode: 19

Dot matrix display:
 8 user-adjustable characters

Radio triggering:
 Channel: CH1 to 32
Quad-triggering zone: A, B, C, or D

NOTE:
 To comply with local broadcast regulations, Sekonic wireless systems sold in the various markets around the world are designed to operate at different frequencies. When purchasing and/or installing a transmitter module or using the meter with a receiver, be sure that the meter, module and receiver are designed to be used in your location and use the same frequency.

Other features

Operating temperature range:
 -10 to +50 deg. centigrade
Power:
 Two AA 1.5V batteries (Alkaline, Manganese, lithium, Nickel, NiCd and NiH)

Dimensions:
 2.4"W x 6.2"H x 1.1"D (62mmW x 158.6mmH x 28mmD)

Weight:
 8.1 oz ( 230g) with batteries

Standard accessories supplied:
 Soft case, Strap, Synchro terminal cap, Operating manual, Quick Guide, 2 AA dry cell alkaline batteries
Main functions: Color temperature measurement, illuminance measurement, Custom settings, Preset White Balance/Color Compensation, Color/illumination contrast comparison, Battery power indicator, Auto power off, Automatic EL backlight, Jog wheel lock, Tripod socket, Wireless radio triggering
