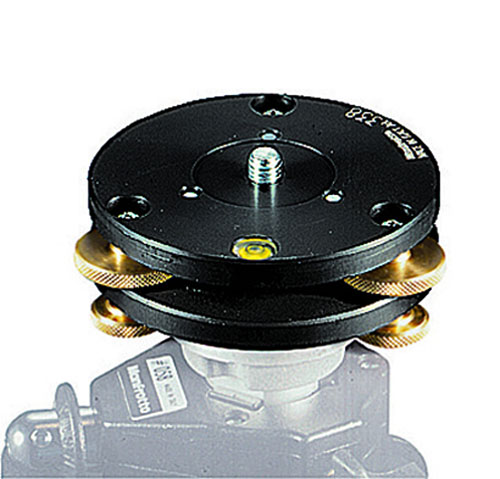

LEVELING BASE

  The 338 is fitted between tripod and head and is used in combination with tripods that don’t have built-in levelling mechanisms. Its three adjustment dials enable the operator to make fine, finger tip adjustments up to +/- 5 degrees to ensure the camera is perfectly level. The dials also have locking rings to ensure stability once the right position is reached. A spirit level is built in for reference. The base has a 3/8” female tripod fitting and a 3/8” male head fitting.

attachment

3/8" female thread attachment type

attachment number

3/8'' screw attachment type

 bubble spirit level (no.)

1 number

colour:

black

front tilt

-5° / +5° tilt range

material

aluminum

load capacity:

15 kg

weight:

0.6 Kg

working height:

4.0 cm
